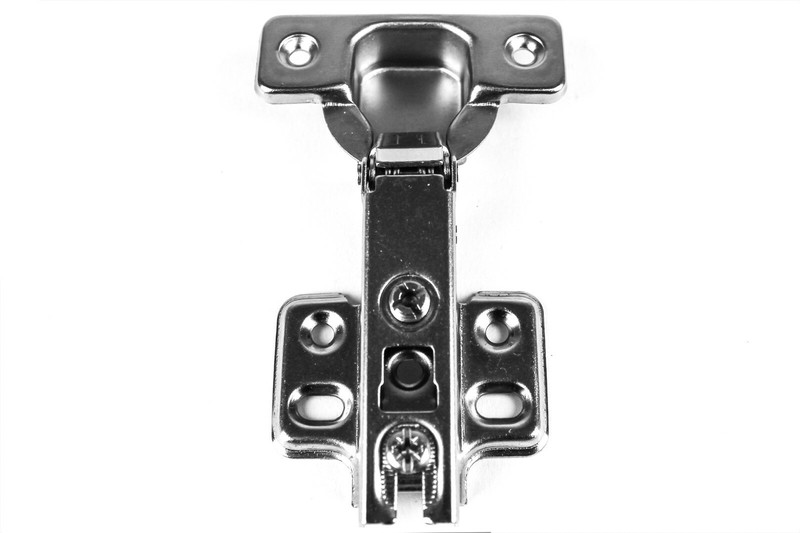

2 Pieces Full Overlay Frameless Concealed Cabinet Hinges with Screws
MAIN SPECIFICATION OPENING ANGLE: 105 Degree. OVERLAY: Full Overlay. CUP DIAMETER: 1-2/5”(35 mm) CUP DEPTH: 1/2"(12.5 mm) SUITABLE DOOR THICKNESS: 3/5"-1"(16 – 24 mm) SCREW HOLE CENTER TO CENTER: 1-4/5"(45 mm) MATERIAL: Cold Rolled-Steel. FINISH: Nickel Plated. CLOSING TYPE: Self Close. ADJUSTMENT: 3-way adjustable: Side(-3mm +1mm), Depth(+3mm -1mm) and Height(+2mm -2mm). CABINET TYPE: Frameless. BORE DISTANCE: 1/8"(3 mm) MAIN FEATURES The hinge will have a straight arm and it allows your cupboard door edge to be completely in line with the edge of your cabinet. One major advantage of a full overlay concealed hinge is that is fully adjustable due to three little screws which it has. They can be fine-tuned to ensure the door frame is totally concealed and fits together perfectly. These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. Our products shipped with installation screws. USING These Hinges Used Everywhere, From Kitchen To Office In Frameless Cabinets. NOTE: Our hinges are for frameless cabinets. PAYMENT We accept PayPal only. Please make payment within 3 days. SHIPPING We ship within 1 business day after payment is cleared. We only ship to your PayPal shipping addresses. No exceptions! Please make sure your PayPal shipping address is correct and deliverable. You'll have to pay additional shipping cost to re-send package. Lost package due to your address problem will not be re-sent or replaced. RETURN Items can be returned for refund, less shipping & handling, within 14 days after receiving items. Buyer will be responsible for return shipping cost. Please contact us for return authorization, and returned items must be received within 14 days after RMA# is given out. Returned items must be in their original packaging, never used, and in perfect brand new condition. We apply restocking fee.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Material | Steel |
| Type | Door Hinge |
| MPN | Does Not Apply |
| Brand | Unbranded |
MAIN SPECIFICATION OPENING ANGLE: 105 Degree. OVERLAY: Full Overlay. CUP DIAMETER: 1-2/5”(35 mm) CUP DEPTH: 1/2″(12.5 mm) SUITABLE DOOR THICKNESS: 3/5″-1″(16 – 24 mm) SCREW HOLE CENTER TO CENTER: 1-4/5″(45 mm) MATERIAL: Cold Rolled-Steel. FINISH: Nickel Plated. CLOSING TYPE: Self Close. ADJUSTMENT: 3-way adjustable: Side(-3mm +1mm), Depth(+3mm -1mm) and Height(+2mm -2mm). CABINET TYPE: Frameless. BORE DISTANCE: 1/8″(3 mm) MAIN FEATURES The hinge will have a straight arm and it allows your cupboard door edge to be completely in line with the edge of your cabinet. One major advantage of a full overlay concealed hinge is that is fully adjustable due to three little screws which it has. They can be fine-tuned to ensure the door frame is totally concealed and fits together perfectly. These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. Our products shipped with installation screws. USING These Hinges Used Everywhere, From Kitchen To Office In Frameless Cabinets. NOTE: Our hinges are for frameless cabinets. PAYMENT We accept PayPal only. Please make payment within 3 days. SHIPPING We ship within 1 business day after payment is cleared. We only ship to your PayPal shipping addresses. No exceptions! Please make sure your PayPal shipping address is correct and deliverable. You’ll have to pay additional shipping cost to re-send package. Lost package due to your address problem will not be re-sent or replaced. RETURN Items can be returned for refund, less shipping & handling, within 14 days after receiving items. Buyer will be responsible for return shipping cost. Please contact us for return authorization, and returned items must be received within 14 days after RMA# is given out. Returned items must be in their original packaging, never used, and in perfect brand new condition. We apply restocking fee.
