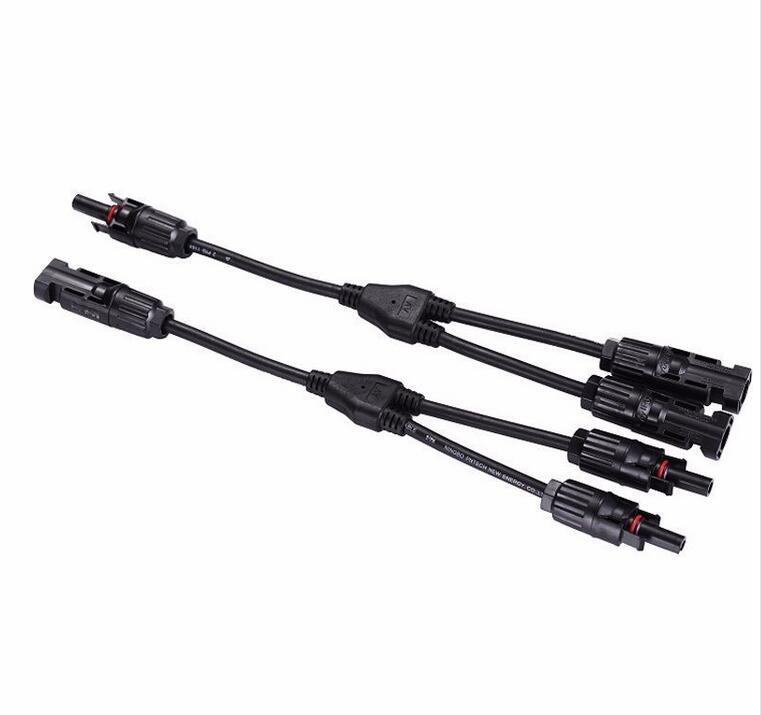

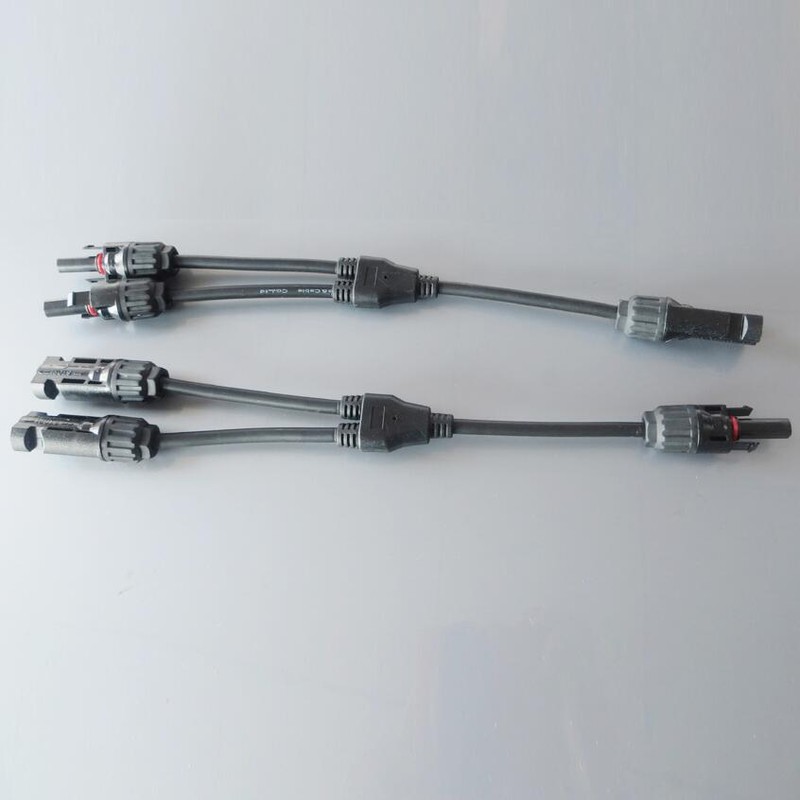

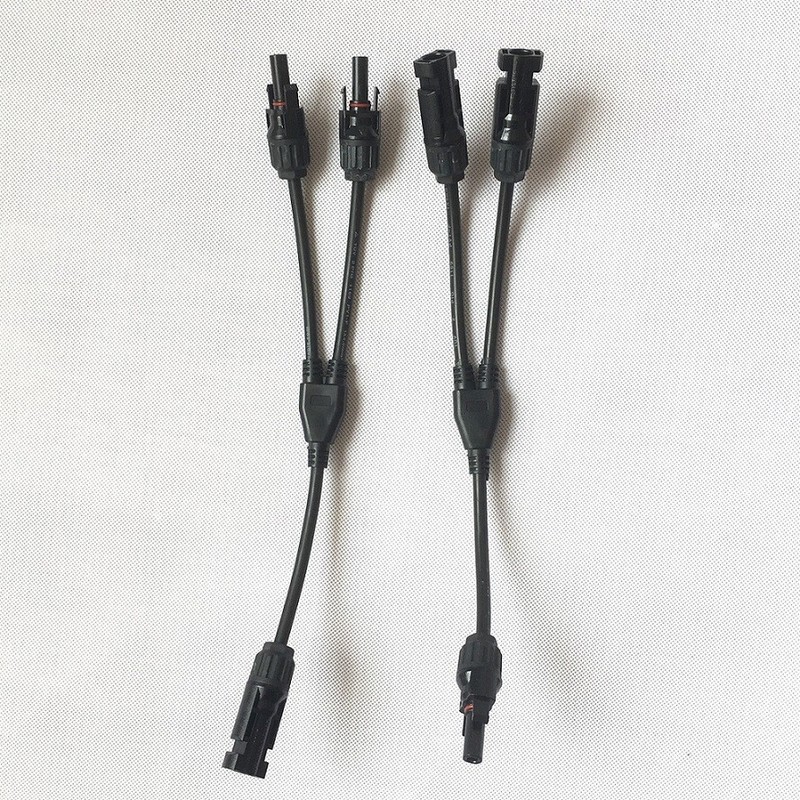

Solar Panel Cable Wire Connector PV Wire Branch T Y Splitter Adapter
Solar Panel Cable Wire Connector PV Wire Branch T Y Splitter Adapter Specification · Rate voltage: 1000V DC · Rate current :20A ( 4MM2 ) 30A ( 6MM2 ) · Safety Class: Ⅱ · Protection Degree : IP67 · Locking system: Snap in · Protection degree: IP67 · Insulation material: PPO + PA · Contact Material : Copper cn , Plate with nickel sn · Contact resistance: ≤0.5mΩ · Insulation resistance: >500mΩ · Cable outer diameter : Φ5mm ～Φ 7mm · Cable size range : 1.5mm2—6mm2 ( 10,12,14,16 AWG) · Operating temperature: -40°C~ +105°C · Flame Class : UL94-VO · Insertion force : <=50N , Pullout force>=50N Description: · Male Female 1 to 2 Wire Solar Connector · Lower contact resistance · Strong pulling force capability · Created seal, design of dust proof · It can be used in harsh environment · With convenient installation, strong commonality · Double seal rings to better waterproof effect · Compatible with PV cables with different insulation diameters · With excellent aging resistance and UV endurance · Load capability with big current and high voltage · Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument · Resistance of extra high & low temperature and fireproof · With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover SHIPPING : We ship to international via Speedpack or E-package or China Post Airmail . Items are shipped within 1-3 business day after receive cleared payment. Most item will arrive within 7-20 business days. It depend on factors like postal service, customs check, distance. In some cases, ship to some countries will take over 4 weeks, especially some south america countries or african countries. Now we attatch a table to show you the delivery time for different countries for you to refer : Country / Region Estimated Delivery Time Working days are not including Saturday, Sunday. Estimated Delivery Time Working days + Saturday + Sunday United States, Canada 7 - 18 Working days 10 - 24 days Australia, United Kingdom, South Korea , Singapore , Malaysia , Austria , Belgium ,Switzerland ,Denmark , Finland , Hungary , Ireland , Italy , Luxembourg , Netherlands , New Zealand , Poland , Portugal , Sweden 10 - 18 Working days 12 - 24 days France ,Turkey , Mexico , Russia , Israel , Saudi Arabia , Ukraine , Norway , Brazil 14 - 18 Working days 18 - 30 days Other countries 20-30 working days 30 - 50 days FEEDBACK Note: Do not hesitate to talk with us anytime before and after the purchases, we are committed to your 100% customer satisfaction. I am here and ready to assist you with any question or concerns you might have before or after the purchase. If you have the problem with our goods, please talk with us first with eBay message BEOFRE you open return request or file a dispute or leave the netural or negative feedback. My goal is to make sure you are happy and having the pleasant shopping with us.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | Does Not Apply |
| Resistance Properties | Chemical Resistant |
| Country/Region Of Manufacture | China |
Solar Panel Cable Wire Connector PV Wire Branch T Y Splitter Adapter Specification · Rate voltage: 1000V DC · Rate current :20A ( 4MM2 ) 30A ( 6MM2 ) · Safety Class: Ⅱ · Protection Degree : IP67 · Locking system: Snap in · Protection degree: IP67 · Insulation material: PPO + PA · Contact Material : Copper cn , Plate with nickel sn · Contact resistance: ≤0.5mΩ · Insulation resistance: >500mΩ · Cable outer diameter : Φ5mm ～Φ 7mm · Cable size range : 1.5mm2—6mm2 ( 10,12,14,16 AWG) · Operating temperature: -40°C~ +105°C · Flame Class : UL94-VO · Insertion force : =50N Description: · Male Female 1 to 2 Wire Solar Connector · Lower contact resistance · Strong pulling force capability · Created seal, design of dust proof · It can be used in harsh environment · With convenient installation, strong commonality · Double seal rings to better waterproof effect · Compatible with PV cables with different insulation diameters · With excellent aging resistance and UV endurance · Load capability with big current and high voltage · Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument · Resistance of extra high & low temperature and fireproof · With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover SHIPPING : We ship to international via Speedpack or E-package or China Post Airmail . Items are shipped within 1-3 business day after receive cleared payment. Most item will arrive within 7-20 business days. It depend on factors like postal service, customs check, distance. In some cases, ship to some countries will take over 4 weeks, especially some south america countries or african countries. Now we attatch a table to show you the delivery time for different countries for you to refer : Country / Region Estimated Delivery Time Working days are not including Saturday, Sunday. Estimated Delivery Time Working days + Saturday + Sunday United States, Canada 7 – 18 Working days 10 – 24 days Australia, United Kingdom, South Korea , Singapore , Malaysia , Austria , Belgium ,Switzerland ,Denmark , Finland , Hungary , Ireland , Italy , Luxembourg , Netherlands , New Zealand , Poland , Portugal , Sweden 10 – 18 Working days 12 – 24 days France ,Turkey , Mexico , Russia , Israel , Saudi Arabia , Ukraine , Norway , Brazil 14 – 18 Working days 18 – 30 days Other countries 20-30 working days 30 – 50 days FEEDBACK Note: Do not hesitate to talk with us anytime before and after the purchases, we are committed to your 100% customer satisfaction. I am here and ready to assist you with any question or concerns you might have before or after the purchase. If you have the problem with our goods, please talk with us first with eBay message BEOFRE you open return request or file a dispute or leave the netural or negative feedback. My goal is to make sure you are happy and having the pleasant shopping with us.
