Wall Mounted Garage Door Control Panel for LiftMaster Chamberlain Security Plus

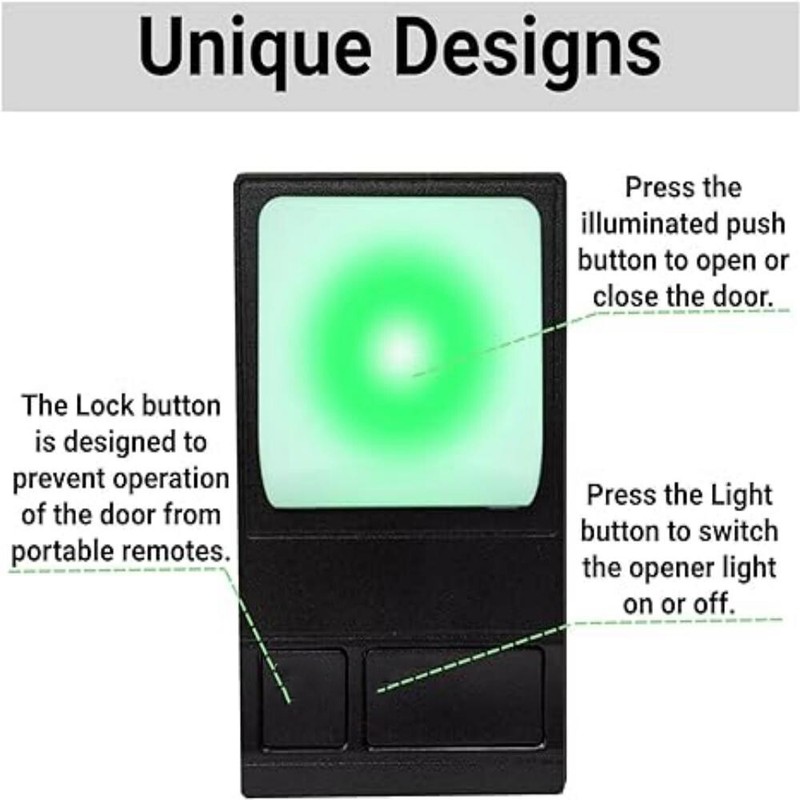

Note: FOR USE WITH GARAGE DOOR OPENERS MANUFACTURED AFTER JANUARY 1,1995. To ensure proper function of your opener, remove all old or previous push buttons/wall control panels. Use only the enclosed door control for proper operation. To activate: Press and hold the Lock button for 2 seconds. The push button indicator light will flash as long as the lock is on. To turn off: Press and hold the Lock button again for 2 seconds. The indicator light will stop flashing. Normal operation will resume. The Lock feature will also turn off whenever the Learn button on the opener end panel is activated. Feature: -Indoor wall-mounted door controller, compatible with Security + systems. -Replaces standard door control buttons. -Conveniently installed in the garage through your access door, -Open the garage door at the touch of a button. -Includes an oversized illuminated push button. -Turn on and off opener lights to provide additional lighting for garage work. -Features that lock all external radio signals for added security. -All Security+ systems for LiftMaster (code rotation). -Also compatible with Chamberlain, Sears, Master Mechanic, Garage Master, Wayne-Dalton and Raynor. -For 78LM 79LM 81LM 371LM 971LM Fitment: -For Learn Button: Purple, Orange, Red, Green. -For Chamberlain, Sears, Master Mechanic, Garage Master, Wayne-Dalton and Raynor. -For 78LM 79LM 81LM 371LM 971LM -For 390MHZ GreenLearn Button: 1245, 1255,1270, 1280. -For 390MHZRed/Orange Learn Button: 1245R/1255R, 1265R, 2220, 2245/2255, 2265, 2280, 2500, 2575, 2585, 2595. -For 315MHZ PurpleLearn Button: 1345/1355, 1356, 3220, 3240, 3265, 3270, 3280 3800, 3500, 3850, 3585, 3595. Specification: -Color: Black -Type: Wall Button -Material: Plastic/ABS -Size: 4.9*3*0.7in Package included: 1/2 x multifunction control panel 1/2 x instruction manual 3/6 x expansion screw (the red and white cords are not included) Before Installation: Please make sure: 1. The wires are 24 volt low voltage wires. 2. The power is disconnected. 3. All old or previous push buttons or control panels are removed. Installation Steps: 1. Locate the door control within sight of the door at a minimum height of 5 feet (1.5m). 2. Strip about 6mm of insulation from each end of your wires. Pass your wires through the middle hole of the the back cover. 3. Fix the back cover with screws on the wall. Do not overtighten, or you may damage the plastic housing. 4. The wires are connected to the two screw terminals on the circuit board. 5. Buckle the circuit board to the back cover.
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Power Source | Corded |
| Items Included | Batteries |
| MPN | Does Not Apply |
| Manufacturer Warranty | 5 Years |
| Item Height | 4.9 in |
| Style | Lightweight Portable |
| Features | Illuminated Buttons |
| Unit Quantity | 1/2 PC Wall Remote |
| Item Width | 3 in |
| Compatible Brand | For Chamberlain |
| Battery Technology | Lithium-Ion |
| Operating Range | 100 ft |
| Color | Black |
| Compatible Model | For 78LM |
| Material | Plastic |
| Item Depth | 0.7IN |
| Brand | Unbranded |
| Type | Wall Button |
| Model | Wall Garage Remote |
| Frequency | 315 MHz |
